Programmable LED dimmer

Posted on Wednesday, May 10th, 2017 in LEDs, programmers by DP

20170423_ProgrammableDimmer_041

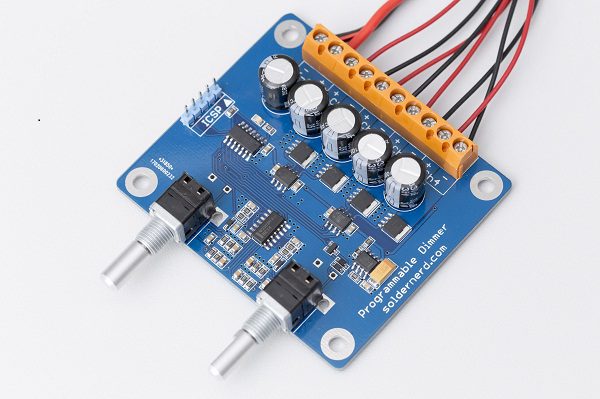

Programmable LED dimmer from Soldernerd:

Around one and a half years ago I’ve designed and built various LED dimmers for both white and RGB LEDs. Then late last year someone approached me asking if I could make an RGB dimmer for him, too. But my designs were really tailored to their specific applications and built with home-made, i.e. milled PCBs which are time-consuming to make. So I decided to make a more universal version based on a proper, etched board which could be built in a small series and used for all kind of applications, both white and RGB. The result is this versatile, programmable 4-channel dimmer.
The design is based on my previous RGB dimmer but with a number of improvements.

Project info at Soldernerd homepage and the GitHub repository here.
