Bus Pirate v3.8 free PCB build

Posted on Monday, April 10th, 2017 in builds by DP

diybuspirate-600

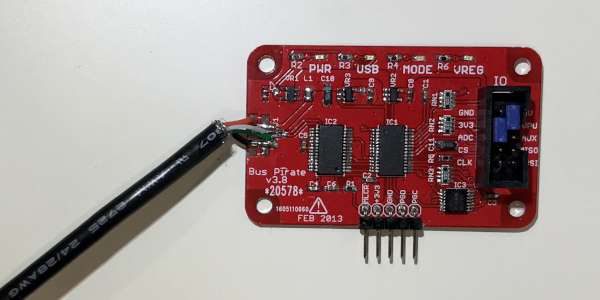

Zak built a free Bus Pirate v3.8 PCB. The Bus Pirate is an open source hacker multi-tool that talks to electronic stuff.

If you build a free PCB we’ll send you another one! Blog about it, post a picture on Flicker, whatever – we’ll send you a coupon code for the free PCB drawer.

Get your own handy Bus Pirate for $30, including world-wide shipping. Also available from our friendly distributors.
