Teardown of an HP 8671A microwave frequency synthesizer

Posted on Monday, February 5th, 2018 in Teardowns by DP

p-HP8671A-600

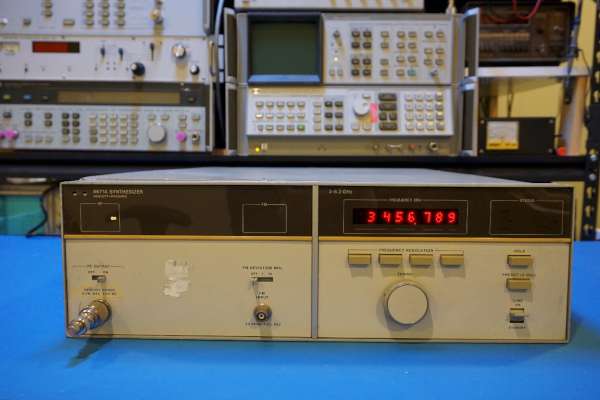

Kerry Wong did a teardown of an HP 8671A microwave frequency synthesizer:

I recently bought an HP 8671A microwave frequency synthesizer on eBay. This synthesizer can generate signals from 2GHz to 6.2GHz with an unleveled output of more than 8dBm. It is a nice complement to my HP 8642B signal generator and Wavetek 907 signal generator. Using these generators, I can now generate signals of pretty much any frequencies under the 12GHz range. A video of this teardown is linked towards the end of this post.

More details on his blog here.

Check out the video after the break.
