App note: Capacitance change with applied DC voltage

Posted on Sunday, October 8th, 2017 in app notes by DP

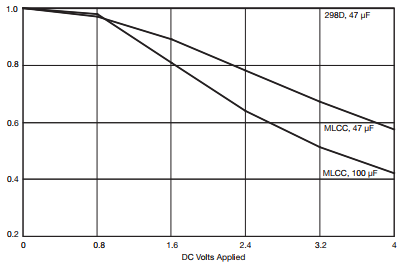

an_vishay_capchange

Tantalum comparison to other types of capacitors shows stable capacitance in this app note from Vishay, Link here (PDF)

Tantalum capacitors in general – and Vishay’s 298D/TR8/TM8 MicroTan tantalum capacitors in particular – demonstrate very stable performance over the DC voltage (bias) applied in an application. At the same time, the majority of capacitors utilizing ceramic or polymer dielectrics (monolithic ceramic, disc ceramic, MLCC, polyester, film, etc.) demonstrate significant shift in both directions – sometimes 40 % to 50 % or higher
