Improved Bus Pirate case sticker

Postby adamoutler » Sun Jun 12, 2011 4:07 pm

Hey, I was looking at the bus pirate reference cards and I found that most of the ones on the wiki were out of date or had wrong color codes.

So I made a new one with these features
  • Easy to read
  • Compatible with SeeedStudios' cable
  • Shows which modes all pins are active
  • Has high visibility of color codes
  • Includes pin numbers and signal names

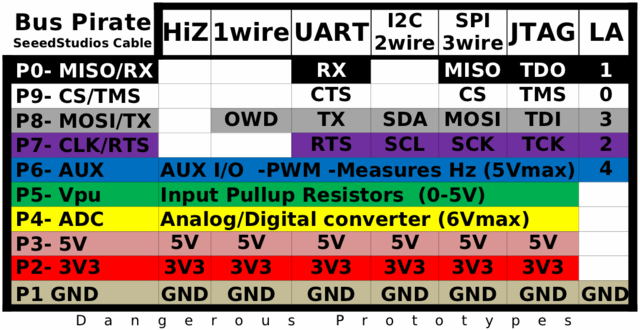

Here's a sample image
png:http://the-bus-pirate.googlecode.com/svn/trunk/documents/V3/ImprovedBusPirateRef.png
The downlod contains a PDF for printing in high quality, and an XLS file ( you can modify it with this). I used LibreOffice to make this, so Microsoft Office will look different.
The proper printing size of the PDF is: 42% for sticker which covers the back, 38% for paper with clear tape over the top

Download the High Quality PDF and Spreadsheet
http://the-bus-pirate.googlecode.com/sv ... ateRef.pdf
http://the-bus-pirate.googlecode.com/sv ... ateRef.ods

Please review for accuracy. Use this as you wish, no copyrights, I made it for myself. I'll make any changes required. Let me know if there's anything I should add.
Last edited by adamoutler on Sun Jun 26, 2011 11:38 pm, edited 12 times in total.
adamoutler
Jr. Member
Jr. Member

Posts: 56
Joined: Sat Jun 11, 2011 1:46 pm

Re: Improved Bus Pirate case sticker

Postby ian » Mon Jun 13, 2011 1:35 am

Very nice, thanks! I'll post this up.
User avatar
ian
Crew
Crew

Posts: 10499
Joined: Mon Jul 06, 2009 6:14 am

Re: Improved Bus Pirate case sticker

Postby schazamp » Mon Jun 13, 2011 7:14 am

One small thing, aren't MOSI and CLK often called SDA and SCK on the I2C bus? That might be confusing for the inexperienced.
schazamp
Full Member
Full Member

Posts: 225
Joined: Wed Jan 19, 2011 9:51 am
Location: St. Louis, MO

Re: Improved Bus Pirate case sticker

Postby adamoutler » Mon Jun 13, 2011 8:16 am

Thanks... I'll make the appropriate adjustments later tonight.
adamoutler
Jr. Member
Jr. Member

Posts: 56
Joined: Sat Jun 11, 2011 1:46 pm

Re: Improved Bus Pirate case sticker

Postby adamoutler » Mon Jun 13, 2011 7:59 pm

I updated the first post with the SDA and SCK changes

I also modified spacing a bit. The new size is 33% for printing on the PDF.
adamoutler
Jr. Member
Jr. Member

Posts: 56
Joined: Sat Jun 11, 2011 1:46 pm

Re: Improved Bus Pirate case sticker

Postby Sjaak » Tue Jun 14, 2011 2:57 am

One minor thing: on I2C the clock is called 'SCL', IIRC 'SCK' is a SPI term. Also serial doesn't have a clock, because it is asynchronous.

BTW nice sticker! Nice use of the colours.
User avatar
Sjaak
Fellow
Fellow

Posts: 3002
Joined: Sun Jan 03, 2010 2:45 pm
Location: Hiero

Re: Improved Bus Pirate case sticker

Postby schazamp » Tue Jun 14, 2011 7:14 am

D'oh! You're right, of course, Sjaak. Sorry to lead you astray, adamoutler. I do like this sticker a lot, it looks very nice.
schazamp
Full Member
Full Member

Posts: 225
Joined: Wed Jan 19, 2011 9:51 am
Location: St. Louis, MO

Re: Improved Bus Pirate case sticker

Postby adamoutler » Tue Jun 14, 2011 7:26 am

I had never heard of clk on uart either. It was on the seeedstudios label. Are you sure that its unused on the Bus Pirate?
adamoutler
Jr. Member
Jr. Member

Posts: 56
Joined: Sat Jun 11, 2011 1:46 pm

Re: Improved Bus Pirate case sticker

Postby arhi » Tue Jun 14, 2011 7:27 am

it exist for synchronous serial port .. not sure one is implemented in bp
User avatar
arhi
Hero Member
Hero Member

Posts: 2104
Joined: Thu Jun 24, 2010 11:41 am
Location: Belgrade, Serbia

Re: Improved Bus Pirate case sticker

Postby Sjaak » Tue Jun 14, 2011 7:54 am

There is no synchronous mode in UART mode (hence the A :)). The 3 wire library takes care of this.
User avatar
Sjaak
Fellow
Fellow

Posts: 3002
Joined: Sun Jan 03, 2010 2:45 pm
Location: Hiero

Re: Improved Bus Pirate case sticker

Postby arhi » Tue Jun 14, 2011 8:41 am

I was not sure if BP uses UART or full USART ..
User avatar
arhi
Hero Member
Hero Member

Posts: 2104
Joined: Thu Jun 24, 2010 11:41 am
Location: Belgrade, Serbia

Re: Improved Bus Pirate case sticker

Postby adamoutler » Tue Jun 14, 2011 5:26 pm

Removed CLK from UART and changed I2C SCK to SCL. Anything else?
adamoutler
Jr. Member
Jr. Member

Posts: 56
Joined: Sat Jun 11, 2011 1:46 pm

Re: Improved Bus Pirate case sticker

Postby erdabyz » Thu Jun 16, 2011 5:02 am

SPI's clock is usually caled "SCK" instead of "TCK".

Veeery nice work, I'll see if I can find any quality plastic sticker and print it on it, and stick it to the back of my BP. It'll provide short-circuit protection and at the same time I won't lose it.

Thanks!
erdabyz
Full Member
Full Member

Posts: 172
Joined: Wed May 25, 2011 8:13 am

Re: Improved Bus Pirate case sticker

Postby Sjaak » Thu Jun 16, 2011 5:25 am

In case you need the current pinout and don't have a sticker handy, we included a commando to display it. See http://dangerousprototypes.com/docs/Bus ... age_report

BTW you should state somewhere on sticker it is for the seeed cable. Sparkfun also carries a probe which uses a different pinout.
User avatar
Sjaak
Fellow
Fellow

Posts: 3002
Joined: Sun Jan 03, 2010 2:45 pm
Location: Hiero

Re: Improved Bus Pirate case sticker

Postby Sjaak » Thu Jun 16, 2011 5:28 am

I also updated the blog post about it.
User avatar
Sjaak
Fellow
Fellow

Posts: 3002
Joined: Sun Jan 03, 2010 2:45 pm
Location: Hiero
