App note: Interfacing to analog switches: Driving the control input of an analog switch with 1.8 V or lower − Is it safe?

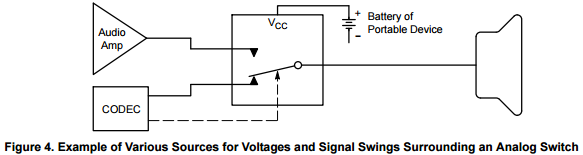

an_on_AND8304_D

ON Semiconductor’s analog switches let you drive with an input control voltage lower than Vcc. Link here (PDF)

Analog switches are everywhere today. Due to their small size and low current consumption, they are popular in portable devices where they are effective in a variety of subsystems including audio and data communications, port connections, and even test. They can be used to facilitate signal routing, allow multiple data types to share an interface connector, or permit temporary access to internal processors during manufacturing. Analog switches are often used to give portable system designers a convenient method of increasing their features or accessibility without duplicating any circuitry. Understanding the key specifications and tradeoffs can make the difference between a temporary fix and a truly optimized solution.
